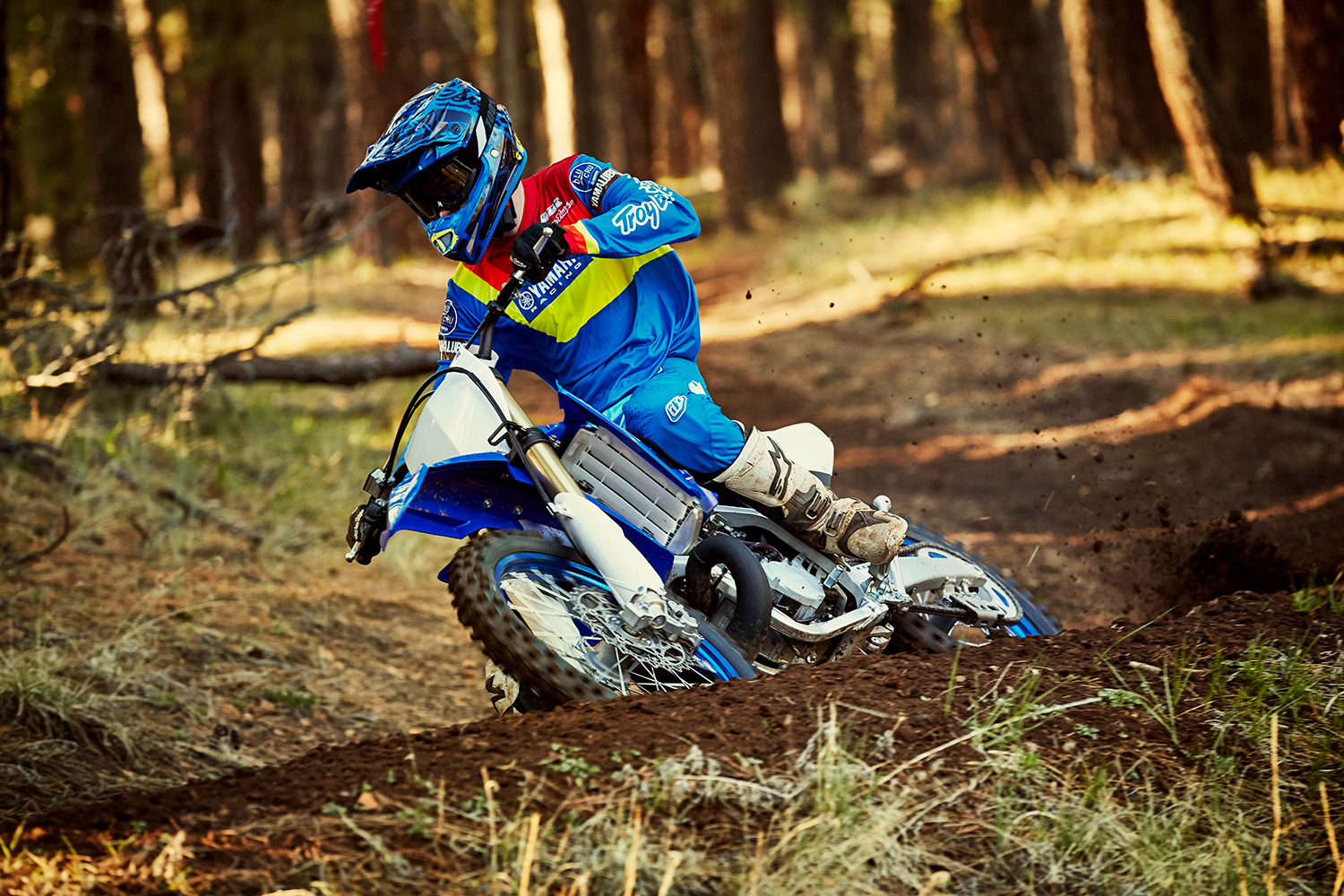

The YZ250X is a two-stroke weapon developed specifically for off road racing. It is designed to appeal to riders who favour the sharp handling, instant power delivery and simple maintenance of a fast revving powerplant. Industry leading twin chamber speed sensitive KYB suspension is a bonus for enduro racing.
YZ250X features include an 18-inch rear wheel, sealed O-ring chain, wide ratio transmission, narrow expansion chamber, off-road focused tyres and suspension settings, a sidestand and fuel tank petcock with reserve position.
The two-stroke will be available with an optional cross country rec rego kit which is expected to prove popular in states that offer recreational registration.
*Images are shown for reference only, product specifications and data are subject to change without notice.
Legendary YZ250 249cc liquid-cooled reed-valve-inducted two-stroke engine, a new compression ratio, new exhaust port timing, updated CDI unit – all focused on making a wide, controllable power character ideal for off road racing.
Patented Yamaha Power Valve System - now with broader opening timing for even smoother power - combines bottom-end acceleration with strong midrange and eye-opening top-end.
New exhaust expansion chamber is designed especially for the new YZ250X, and is narrower both horizontally and vertically for clearance on tight, technical trails, while still providing excellent exhaust efficiency.
38mm Keihin® PWK carburetor with throttle position sensor provides precise fuel/air mixing and crisp throttle response throughout the powerband.
Special-design carbon fibre reed-valve petals improve throttle response and engine performance across the entire rpm range.
Smooth-shifting, five-speed, wide-ratio transmission ensures proper gearing from tight woods sections to wide-open fire roads.
Digital CDI ignition system delivers precise spark for faster, stronger response anywhere in the powerband, specifically tuned for the needs of the new YZ250X.
Large-capacity radiator features a ten-row core with four louvres for maximum cooling efficiency.
YZ250F-style front brake caliper with 270mm wave-style front and 245mm wave-style rear discs minimise unsprung weight and provide excellent stopping power.
A carefully engineered, advanced aluminium frame and swingarm give the YZ250X the famous handling proven by the championship winning YZ250 motocross machine on tracks around the world. Tips the scales at just 104kg with all fluids – which makes it lighter than a four-stroke.
Industry-leading, fully adjustable KYB spring-type fork with speed sensitive damping uses piston speed to control damping force for super-precise handling and a smooth ride, with minimal wasted stroke or abrupt shocks for the rider – all tuned for the demands of off road racing.
Rear, fully adjustable KYB shock features 315mm of travel, separate adjusters for high- and low-speed compression damping, and a full lock oil rebound system for increased comfort, control and fantastic rear wheel traction.
Cross-country-spec Dunlop Geomax AT81 tyres front and rear are ready to head straight to the races. An 18-inch rear tyre has a taller sidewall to improve comfort and reduce pinch flats.
A racy ‘gripper’ type seat and narrow fuel tank combine with a tapered aluminium handlebar and adjustable mounts to create greater freedom of movement and more comfortable ergonomics for riders.
Off-road focused tyres with an 18in rear wheel, wide-ratio gearing, a standard side stand, sealed O-ring chain and a reserve fuel petcock. An optional lighting kit is available that assists in recreational rego in applicable states.
Headlight assembly, cowl and graphic; LED headlight globe; taillight; rear brake light switch; wiring harness, horn; amplifier/capacitor; handlebar switch; RHS mirror; brush guards; horn; stator; front brake line; front brake line upper guide.
|Engine Type||Liquid cooled, two-stroke, reed valve induction|
|Bore x Stroke||66.4 x 72.0 mm|
|Compression Ratio||7.9 : 9.4:1|
|Fuel Management||PWK38S Keihin|
|Fuel Tank Capacity||8 L|
|Transmission||Constant mesh 5 speed|
|Seat Height||970 mm|
|Ground Clearance||355 mm|
|Dry Weight||98 kg|
|Wet Weight||104 kg with 8 litres of fuel|
|Frame Type||Aluminium control filled|
|Suspension Front||KYB Speed-Sensitive System inverted fork; fully adjustable, 300 mm travel|
|Suspension Rear||KYB Monoshock; fully adjustable, 315mm travel|
|Brakes Front||Hydraulic single disc, 270 mm|
|Brakes Rear||Hydraulic single disc, 245 mm|
|Tyres Front||90/90-21 Dunlop AT81F|
|Tyres Rear||110/100-18 Dunlop AT81|
