The Yamaha Raptor 90 is designed to bring maximum fun to the youth ATV class for riders 10 years and older. With a low-maintenance 90cc engine tuned to develop excellent low-to-mid range performance, it also features a fully automatic CVT transmission with reverse gear, gated shifter and electric start with a back-up kickstart - all standard.
The Raptor 90 offers sporty looks and high fenders unmistakably inspired by the mighty Raptor 700R, and is fitted with dual A-Arm front suspension, full floorboards and low profile tyres. Shock absorbers are five-way adjustable for preload and there’s a combination of dual drum brakes up front and a powerful single drum brake out back.
Rider safety is our priority. This ATV should only be ridden by riders aged 10 years and older.
*Images are shown for reference only, product specifications and data are subject to change without notice.
All-new from the ground up, Raptor 90 has the features to deliver more fun than ever before, with a 88cc SOHC 2-valve engine tuned to develop excellent low-to-mid rpm range performance. It also has features surprising in this class and price range, like a fully automatic CVT transmission, dual A-arm front suspension, low-profile tyres, and styling unmistakably inspired by the mighty Raptor 700R.

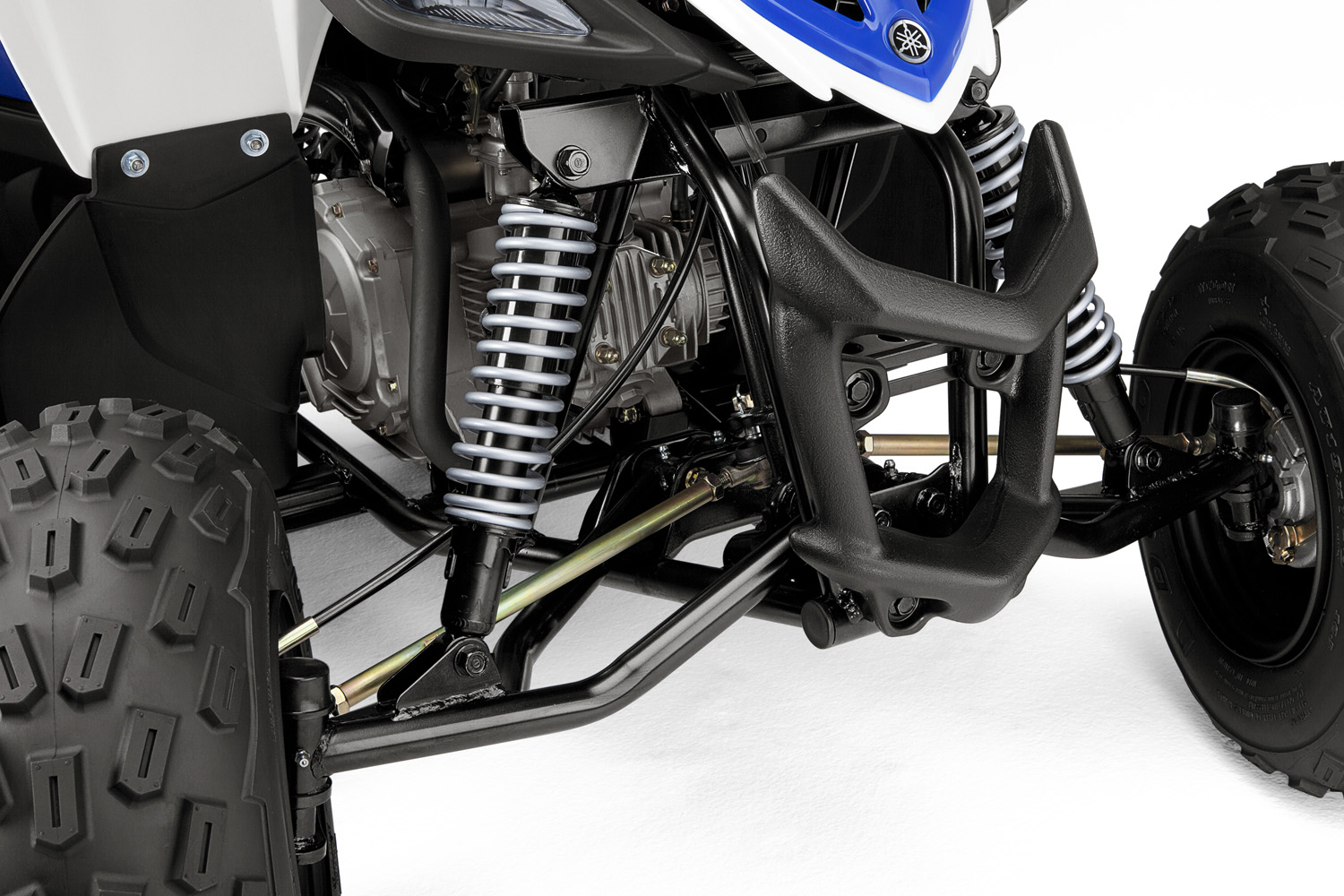

Dual A-arm front suspension has 78mm of travel for sporty-riding comfort, while adding to the Raptor 90’s big-ATV look. Shocks have 5-way preload adjustment to accommodate a variety of riders and terrain. The rear swingarm, also 5-way preload adjustable, offers 83mm of travel.

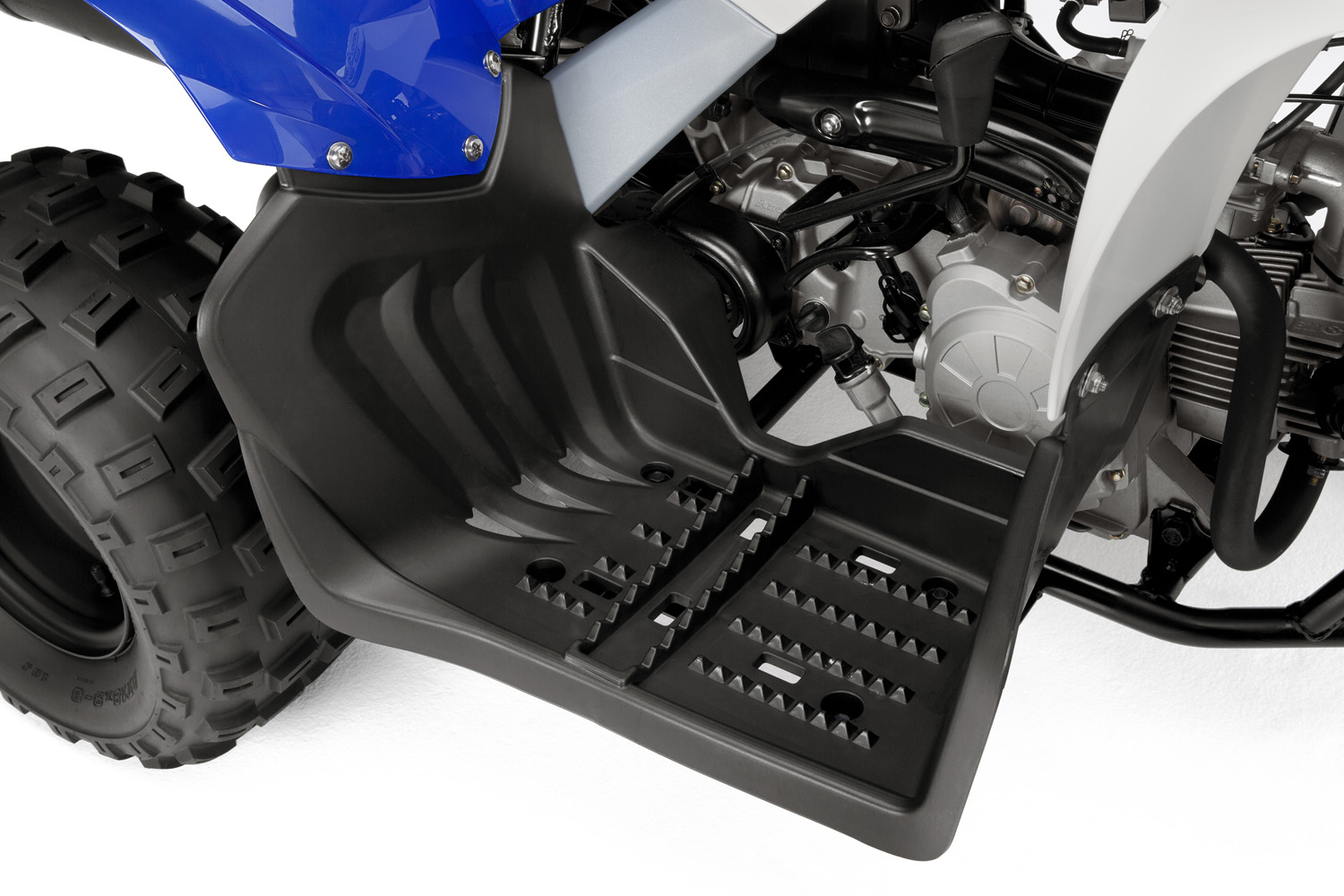

For sporty looks and handling, Raptor 90 uses low-profile tyres. For riding comfort, there are safe full floorboards.
|Engine Type||Single cylinder, air-cooled, 4-stroke, SOHC 2-valve|
|Bore x Stroke||47 x 51.8 mm|
|Compression Ratio||9.2 : 1|
|Lubrication System||Wet sump|
|Starter System||Electric & Kick|
|Fuel Tank Capacity||6.6 L|
|Seat Height||750 mm|
|Ground Clearance||100 mm|
|Dry Weight||120 kg|
|Wet Weight||126.5 kg with 6.6 litres of fuel|
|Suspension Front||Independent double wishbone, 78mm travel|
|Suspension Rear||Swingarm, 83mm travel|
|Brakes Front||Sealed double drum|
|Brakes Rear||Sealed drum|
|Tyres Front||AT 18 x 7-8|
|Tyres Rear||AT 18 x 9-8|
