Awesome power with absolute control!
When you’re looking for a head-turning ATV that delivers a massive spread of liquid-cooled power and offers ultra-sharp handling, there is only one model that ticks all the right boxes.
With its hybrid aluminium/steel sports chassis, fully adjustable suspension and large-diameter front discs, the remarkable YFM700R is built to dominate. And for awesome performance to match its great-handling chassis, this undisputed class leader is driven by a high-torque 686cc four-stroke engine that kicks out huge levels of power and torque that leave the opposition way, way behind!
Want to test ride this model at our Yamaha Sports Rec Demo days? Click here to view our upcoming demo days.
Rider safety is our priority. This ATV should only be ridden by riders aged 16 years and older.
*Images are shown for reference only, product specifications and data are subject to change without notice.

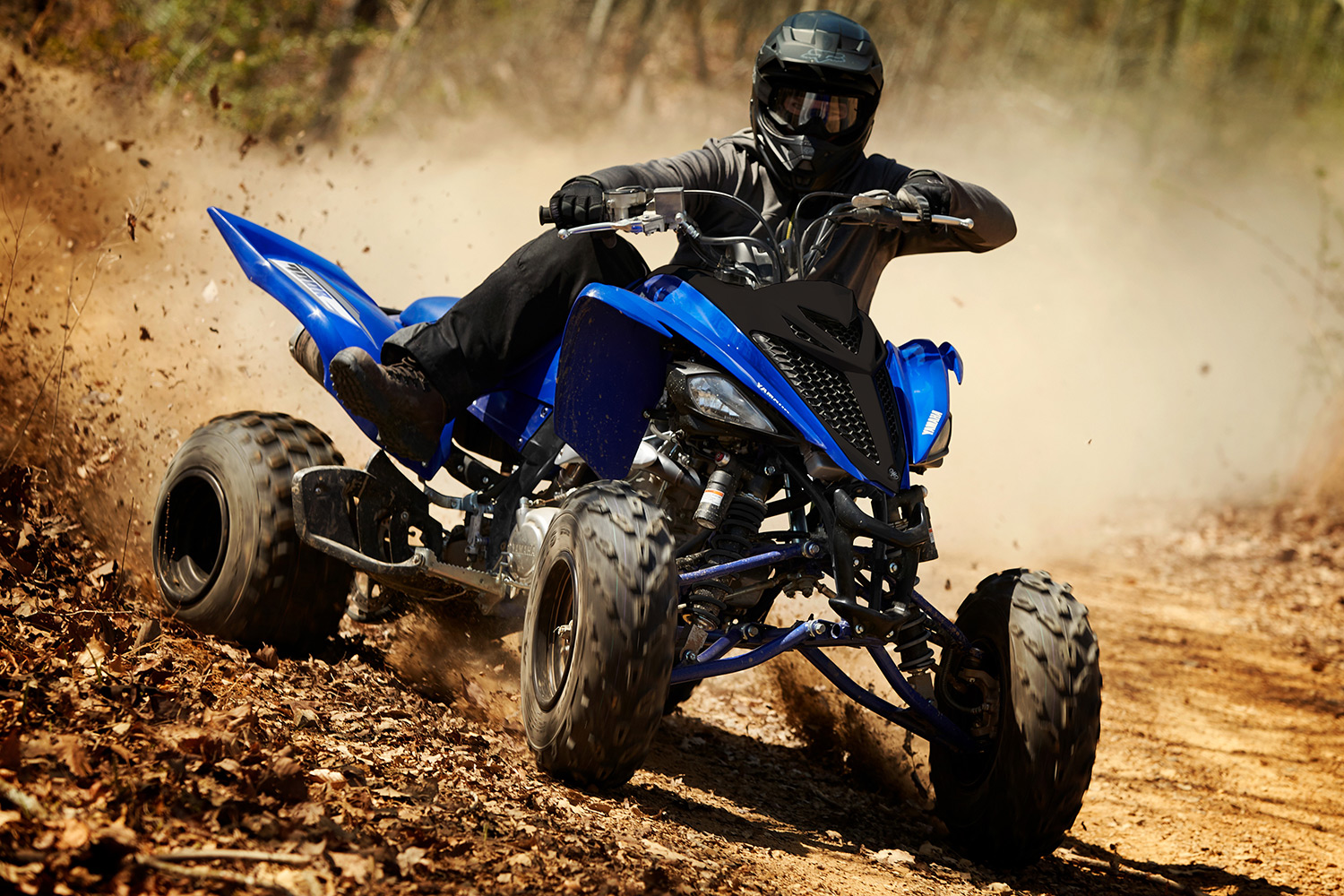

Raptor 700R is designed to dominate in the widest range of riding environments, from tight woods to desert to dunes.
A 686cc Yamaha fuel-injected engine makes this the most powerful sport ATV ever, with big torque right off idle transitioning into a fat midrange and monstrous top end.
Yamaha fuel injection means consistently excellent engine performance in a wide range of conditions, elevations, and temperatures.
Hybrid steel and aluminum frame with a Controlled Fill aluminum subframe and cast swingarm pivot combine to produce a super-strong structure and the lightest ATV in its class.
Aggressive styling reflects Raptor 700R’s intent and YFZ inspired handling means it walks the walk too.
| Engine Type | Liquid cooled, 4-stroke, SOHC, 4 valve, single cylinder |
| Displacement | 686 cc |
| Bore x Stroke | 102 x 84 mm |
| Compression Ratio | 10.0 : 1 |
| Lubrication System | Dry sump |
| Fuel Management | Fuel injection |
| Ignition | TCI |
| Starter System | Electric starter |
| Fuel Tank Capacity | 11 L |
| Oil Capacity | 2.3 L |
| Final Transmission | Chain drive |
| Transmission | 5-speed + reverse |
| Length | 1845 mm |
| Width | 1155 mm |
| Height | 1115 mm |
| Seat Height | 830 mm |
| Wheelbase | 1280 mm |
| Ground Clearance | 113 mm |
| Turning Radius | 3500 mm |
| Dry Weight | 181 kg |
| Wet Weight | 192 kg with 11 litres of fuel |
| Suspension Front | Double wishbone / Independent coil spring oil damper, 230mm travel |
| Suspension Rear | Swingarm (link suspension) coil spring gas/oil damper, 256mm travel |
| Brakes Front | Dual hydraulic disc, 135mm |
| Brakes Rear | Hydraulic disc, 171mm |
| Tyres Front | AT22x7-10 |
| Tyres Rear | AT20x10-9 |
